Did You Know? Surprising Facts About Filtration and Thickening

Filtration and thickening are foundational processes across industries such as mining, chemicals, recycling and manufacturing. While they often operate in the background, they have a significant impact on efficiency, sustainability and operating costs.

Despite their importance, many aspects of these systems remain underappreciated. Performance is rarely limited by a single factor. Instead, it is shaped by the interaction of material characteristics, process conditions and equipment design.

Did You Know Filtration Performance is Not Just About the Equipment?

It is often assumed that installing the right filter press will guarantee strong performance. In practice, the equipment is only one part of a much larger system.

Feed characteristics can significantly influence results. Particle size distribution, slurry composition and chemical conditions all play a major role in system performance.

Two operations using identical filtration equipment can produce very different outcomes based on feed variability alone. For example:

• Fine particle distributions can dramatically increase cycle times by restricting permeability
• Variations in solids concentration can lead to uneven cake formation and inconsistent discharge
• Changes in pH can alter filtration rates and cake release behavior

In many cases, performance issues initially attributed to equipment are ultimately traced back to upstream process variability.

A more effective approach involves evaluating the full system, including material behavior, conditioning and consistency, rather than focusing solely on mechanical components.

Did You Know Many Operations Underestimate Water Recovery Potential?

Modern filtration systems are capable of recovering more than 90 percent of process water when properly optimized. However, actual recovery rates often fall below this threshold due to suboptimal operating conditions.

Common limiting factors include:

• Inconsistent feed density
• Poor flocculation or conditioning
• Inefficient cycle timing or press operation

The gap between potential and actual performance can be significant. Even a modest improvement in recovery rate can translate to:

• Reduced freshwater intake
• Lower pumping and handling costs
• Decreased volume of water reporting to tailings or waste streams

Recovered water is often suitable for reuse in upstream processes, creating a closed-loop effect that improves both cost efficiency and environmental performance.

In water-constrained regions or heavily regulated environments, maximizing recovery is no longer optional. It is increasingly a requirement for sustained operation.

Did You Know Thickening Has a Larger Impact Than Expected?

Thickening is frequently viewed as a simple upstream step, but its influence extends well beyond solids concentration.

A properly operated thickener provides a stable and predictable underflow, which directly improves filtration performance. Benefits include:

• Higher solids density entering the filter press
• Reduced volumetric load on downstream equipment
• More consistent cycle times and cake formation

Conversely, unstable thickening conditions can introduce variability that affects the entire process. Issues such as poor settling, bed disturbance or incorrect flocculant dosing can result in:

• Fluctuating feed consistency
• Reduced throughput
• Increased reagent and energy consumption

In some operations, optimizing thickening performance has resulted in measurable increases in filtration capacity without any changes to the filtration equipment itself.

This highlights the importance of viewing thickening and filtration as interconnected stages rather than independent processes.

Did You Know Filter Media Is a Critical Performance Factor?

Filter cloth is often treated as a routine consumable, yet it is one of the most critical variables in filtration performance.

The selection of filter media influences:

• Throughput and cycle duration
• Cake moisture content
• Solid capture efficiency

Small differences in weave pattern, fiber type or permeability can produce noticeable changes in system behavior. For example:

• Highly permeable media may increase flow rates but allow fine solids to pass through
• Tighter weaves may improve clarity but extend cycle times and increase pressure requirements

Over time, media can also degrade due to blinding, abrasion or chemical exposure, further impacting performance.

Regular evaluation and optimization of filter media can often deliver meaningful improvements without requiring capital investment in new equipment.

Did You Know Automation Has Transformed System Performance?

Advances in automation have reshaped how filtration and thickening systems are operated. Processes that were once highly dependent on operator experience are now driven by real-time data and control systems.

Modern automation enables:

• Continuous monitoring of pressure, flow rates and cycle parameters
• Automatic adjustment to fluctuating feed conditions
• Improved repeatability across cycles

This reduces variability and allows systems to operate closer to optimal conditions for longer periods.

In addition to performance benefits, automation supports:

• Reduced labor requirements
• Enhanced safety through minimized manual intervention
• Improved diagnostics and predictive maintenance capabilities

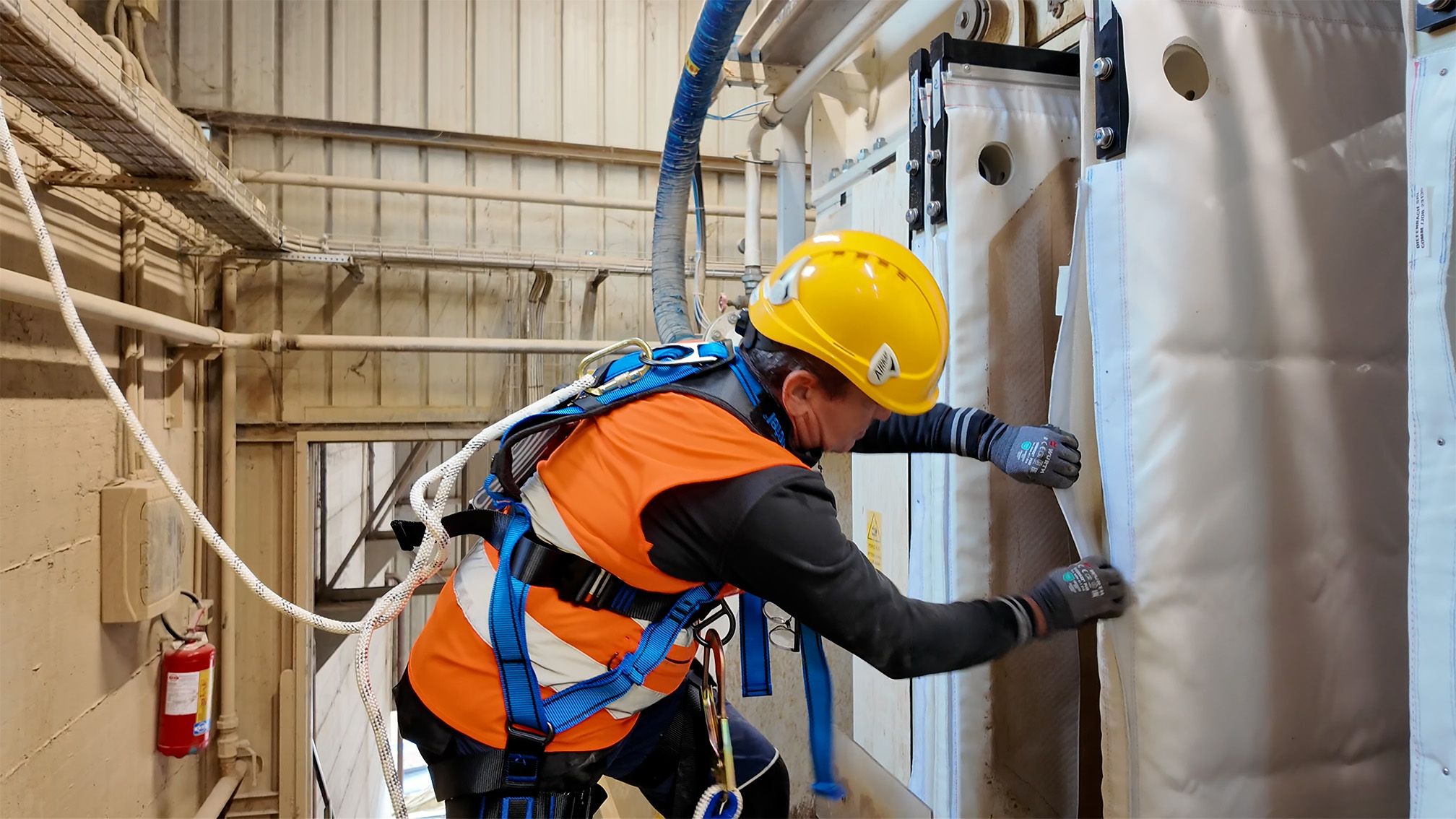

As a result, filtration and thickening are increasingly integrated into broader plant control strategies rather than being treated as standalone operations. In filter press operations, advancements such as the QUICKCHANGE™ system further support these gains by reducing maintenance time and simplifying filter cloth replacement and filter plate inspection. By minimizing manual intervention during service events, these systems help reduce downtime and improve overall process efficiency.

Did You Know Energy Efficiency Has Improved Significantly?

Energy consumption in liquid-solid separation has decreased due to improvements in equipment design and process optimization.

One of the most impactful developments is the ability to produce lower moisture cakes through high-pressure filtration. This has downstream effects, including:

• Reduced or eliminated thermal drying requirements
• Lower material handling and transport costs
• Decreased overall energy consumption per ton processed

In many cases, the energy savings generated downstream exceed the incremental energy required for higher-pressure filtration.

This system-wide perspective emphasizes that efficiency gains in filtration can influence the performance and cost structure of the entire operation.

Did You Know Modern Systems Support Cleaner and Safer Operations?

Filtration systems have historically been associated with challenging operating environments. However, modern design improvements have significantly enhanced cleanliness and safety.

Key advancements include:

• Fully enclosed systems that minimize exposure to materials
• Automated cake discharge that reduces manual handling
• Improved sealing and containment to prevent leaks and spills

These features contribute to:

• Safer working conditions
• Reduced housekeeping requirements
• Easier compliance with environmental and safety regulations

Operational improvements are not limited to performance metrics, they also affect workforce safety and overall plant conditions.

Did You Know Filtration and Thickening Are Central to Sustainability?

Filtration and thickening play a critical role in supporting sustainability objectives across industrial operations.

Efficient separation processes contribute to:

• Reduced water consumption through reuse and recycling
• Lower waste volumes and improved tailings management
• Decreased environmental footprint

In many cases, optimizing these systems can deliver measurable progress toward sustainability targets without requiring major process changes elsewhere in the plant.

As regulatory pressures and environmental expectations continue to increase, the importance of filtration and thickening within sustainability strategies will continue to grow.

A Final Thought

Filtration and thickening are often overlooked despite their substantial influence on operational performance.

The most notable insight is how frequently these systems are under-optimized or not fully understood. Small inefficiencies in feed preparation, media selection or process control can compound into significant performance losses.

A more comprehensive approach, one that considers material characteristics, upstream and downstream interactions and system integration, can unlock meaningful improvements.

Even incremental changes can support:

• Higher efficiency
• Lower operating costs
• More consistent performance
• Stronger environmental outcomes

Filtration and thickening may not always be the most visible parts of an operation, but when properly understood and optimized, their impact is both measurable and far-reaching.
